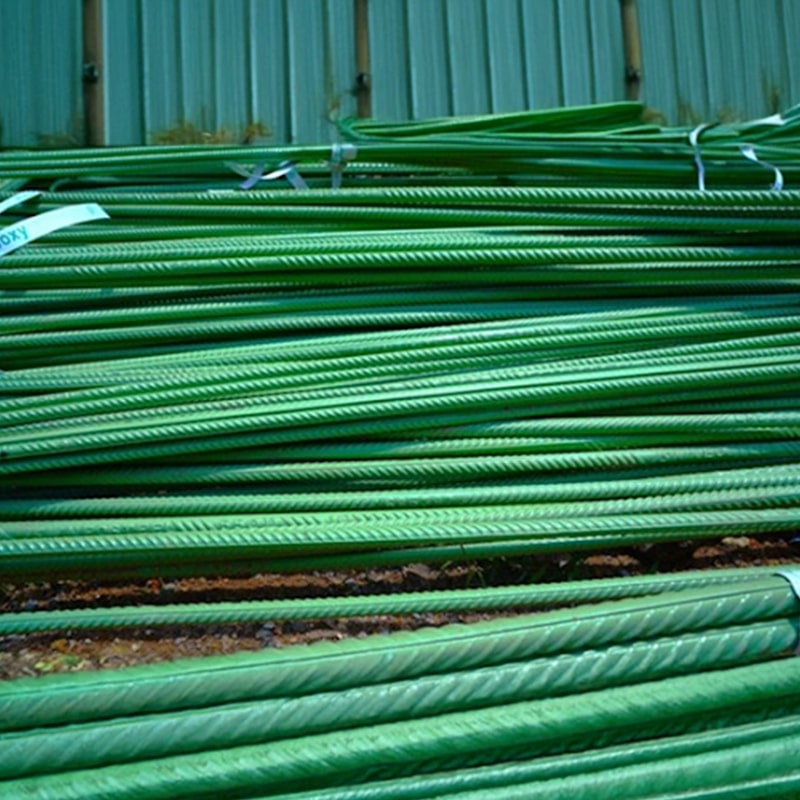

There are few other materials as fundamental in the construction world, as Thermo-Mechanically Treated (TMT) bars. All concrete structures, such as houses and bridges, dams and skyscrapers, consist of steel rods which compose their structure.
The ability of concrete to resist various forces is due to the fact that concrete is strong at compression and weak at tension. It is due to the fact that it is strong, flexible and capable of sticking together due to its special properties.
What precisely is contained in these significant parts then? The solution is found in a complicated metallurgical procedure involving precise mechanical and thermal treatments in order to produce a very strong and very flexible material.
The TMT bar manufacturing process is a well monitored process that converts raw materials to high performance reinforcement steel. This process is what would help us understand why this construction method has been adopted by the industry as the best way of constructing safe and strong buildings.
STAGE 1: RAW MATERIAL SELECTION AND INITIAL PROCESSING
The journey of a TMT bar begins with selecting raw materials. The primary ingredient is steel, typically sourced in the form of billets. These billets are semi-finished cast products, usually with a square cross-section, produced in a steel melting shop.
- Quality of Billets: The billets are essential in terms of their chemical structure. Manufacturers of good reputation utilise billets that have minimal traces of impurities such as Sulphur and Phosphorus hence rendering the steel brittle and corrosive. The billets are usually obtained through a regulated production process in order to make them consistent.
- Sorting and Cutting: Inspection of the surface defects is first performed on the billets that may be several metres long. They are then sliced to the required length depending on the size of the end product and the capacity of the mill. This is a preparation that allows a smooth and continuous flow in the following stages.
STAGE 2: THE HEART OF THE PROCESS – HEAT TREATMENT
It is the distinguishing phase that makes TMT bars better than their predecessors such as TOR steel or Cold Twisted Deformed (CTD) bars. A series of rapid heating and cooling steps that form a distinct graded microstructure are the Thermo-Mechanical Treatment that gives TMT bars all their advanced properties.
The heat treatment occurs immediately after the billets have been rolled to their final shape in the rolling mill. The hot-rolled bar, glowing at a temperature of around 1000°C - 1100°C, enters the "TMT Quenching System." This system typically consists of a series of water jets arranged in a quenching box.
Step 1: Rapid Quenching (Water Cooling):
As the red-hot bar passes through the quenching box, it is subjected to a high-pressure, forced water spray from all sides. This rapid and intense cooling has a profound effect only on the outer surface layer, known as the "rim."
- The Martensite Layer: This rapid quenching leads to the formation of the outer part in the form of a super-hard crystalline structure known as Martensite. This layer gives the bar the high yield strength which is the resistance to permanent deformation with the stress.
- The Core's Reaction: Importantly, the heart of the bar is very hot due to the extreme cooling being very short to reach the whole cross-section. This generates an immensely huge temperature difference between the hardened surface and the soft, austenitic core.
Step 2 Self-Tempering
Once the bar exits the quenching box, the heat from the scorching core immediately begins to flow back towards the cold, martensitic surface. This natural heat transfer is the "self-tempering" stage.
- The heat from the core tempers the hard-but-brittle martensite rim. Tempering involves reheating the martensite to a specific temperature range, which reduces its brittleness while retaining much of its hardness. This results in a tough, "Tempered Martensite" outer layer.versal Testing Machines (UTM) chemical analysers, and metallographs.
- Tempered Martensite: The heat from the core tempers the hard-but-brittle martensite rim. Tempering involves reheating the martensite to a specific temperature range, which reduces its brittleness while retaining much of its hardness. This results in a tough, "Tempered Martensite" outer layer.
Step 3: Atmospheric Cooling
After self-tempering, the bar is allowed to cool naturally in the air on a cooling bed. During this stage, the core, which was still austenitic, transforms.
- The Ferrite-Pearlite Core: The core of the austenitic cools far more slowly, becoming a mixture of soft and ductile Ferrite and Pearlite. This architecture provides the TMT bar with its remarkable ductility and elongation characteristics which enables it to bend and not to snap.
THE RESULT: THE GRADED MICROSTRUCTURE
The brilliance of this TMT bar manufacturing process is the creation of a composite-like structure within a single bar:
- A Hard Outer Surface (Tempered Martensite): For high strength.
- A Soft and Ductile Core (Ferrite-Pearlite): For superior flexibility and earthquake resistance.
This synergy is what makes TMT bars ideal for seismic zones. During an earthquake, the structure will bend and sway. The ductile core allows the bar to deform and absorb this massive energy, while the strong outer layer prevents it from fracturing. This gives occupants crucial time to evacuate before a potential collapse.
STAGE 3: MECHANICAL DEFORMATION - THE ROLLING MILL
The star of the treatment is the heat treatment, but the process is preceded by the necessary mechanical step of the hot rolling. The billets are readied in a furnace where they are heated up in temperature to about 1200-degree Celsius, thus becoming plastic and malleable.
These hot billets are rolled through some rolling stands. Down the stand, there is a series of grooved rollers which successively decrease the cross-sectional area of the billet and form it into a long, slender bar of the desired diameter. This constant pressure applied by the rollers also purifies the grains in the steel making it to possess better mechanical properties. The next step is hot rolling after which the bar at its maximum temperature flows into the TMT quenching system.
These hot billets are rolled through some rolling stands. Down the stand, there is a series of grooved rollers which successively decrease the cross-sectional area of the billet and form it into a long, slender bar of the desired diameter. This constant pressure applied by the rollers also purifies the grains in the steel making it to possess better mechanical properties. The next step is hot rolling after which the bar at its maximum temperature flows into the TMT quenching system.
STAGE 4: FINAL PROCESSING AND QUALITY ASSURANCE
Once the bars have cooled to room temperature on the cooling bed, they undergo several finishing steps.
- Automated Cutting: The long continuous bars are sliced to standard market lengths as 12 or 18 metres with high-speed shears or torches.
- Bundling and Stamping: The cut bars are thereafter strapped into bundles which are of a certain weight to be easy to handle, store and transport. The important data regarding each bundle is stamped as the name of the manufacturer, the grade of the steel and the size.
- Rib Pattern: It's important to note that the characteristic ribbed pattern on the surface of the bar is imparted during the final passes in the rolling mill. This pattern is not merely decorative; it is scientifically designed to create a superior mechanical bond with concrete, preventing slippage under load.
Quality Control is a part and parcel of the entire TMT bar manufacturing process. The production samples are tested in the high-end in-house labs in batches. Key tests include:
- Tensile Test: Measures yield strength, ultimate tensile strength, and elongation.
- Bend Test: Cheques whether the bar is capable of bending at a predetermined angle without breaking.
- Chemical Analysis: Determines the composition of the steel.
Checks on weight and dimension: Check on consistency and standard compliance.
UNDERSTANDING TMT BAR GRADES
TMT bars are categorised into grade depending on their yield strength which is in Megapascals (MPa). Ordinary grades in most countries are:
- Fe 415: Can also be used in small residential buildings but high ductility is required.
- Fe 500: The commonest grade, it has an outstanding strength to ductility balance in general construction.
- Fe 550 and Fe 600: These are high-strength grades that are applied in heavy work such as industrial buildings, high-rise buildings and bridges, allowing the use of less steel of the same load-bearing capacity.
CONCLUSION:
The production of TMT bars can be attributed to be the outcome of modern engineering and metallurgical science. It is not a straightforward exercise of melting and beating metal, but an art of heat and force when engineers are working with a substance of opposing qualities - hardness and softness - to create one, best product. This graded structure is the key to the safety, life span and stamina of the concrete structures which shape our contemporary landscape. Every time you look at a construction site, you are looking at the final result of an amazing process, a TMT bar manufacturing process that makes the very structure of our world constructed in such a way that it will last.
